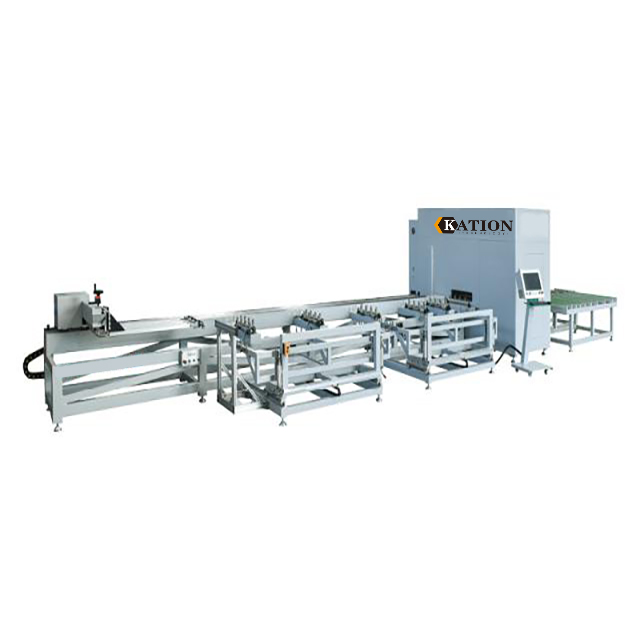

Automatic welding cleaning production line

Automatic welding cleaning production line

    Unit Price: 60000 USD
    Min. Order: 1 Set/Sets
    Packaging: container
    Brand: LIJIANG
    Transportation: Ocean
    Place of Origin: China
    Port: Qing Dao

Product Description

Performance characteristics:
1. The production line consists of a welding unit, a conveying unit (transporting table), a fully automatic angle cleaning unit and an automatic palletizing unit for completing the welding, conveying, corner cleaning and palletizing of the plastic door and window rectangular frame (or fan). Process.
2. The welding unit body is horizontally arranged, and the welding of two rectangular frames can be completed in one clamping.
3. The machine adopts the torque detection technology to realize the automatic pre-tightening of the four corners, ensuring the welding precision.
4. The corner seam cleaning unit adopts the CNC four-head high-efficiency cleaning system to automatically realize the rapid cleaning of almost all welds of plastic doors and windows.
Optional: The welding unit can be customized according to user needs.

Parameter:

Term

Content

Parameter

1

Input power

AC380V/50HZ

2

Input pressure

0.6-0.8MPa

3

Air consumption

400L/min

4

Working environment

Working environment of CNC system-5℃~60℃

LCD:0℃~60℃

pneumatic components-5℃~70℃

5

Total power

Total power34KW

6

Spindle motor speed of disc milling cutter

012000r/min

7

Spindle motor speed of end mill

024000r/min

8

Specification of right angle drill and milling cutter

∮6×7×80

9

End mill specifications

∮6×7×100

10

Profiles height

25~130mm

11

Machining accuracy

40~120mm

12

Machining dimension range

L、W≤2mm;Diagonal≤2.5mm

13

Machining dimension range

49680mm~2400×2600mm

14

Stacking height

1800mm

15

Size

21000×5500×2900mm

16

Each part weight

Welding section: 3200kg

Qingjiao section: 2000kg

Stacking section: 1700kg

Transmission section: 200kg × 3

Automatic welding cleaning production line

Other Insulating Glass Equipment of our company:

1.Insulating Glass Production Line
2.Spacer Bending Machine
3.Desiccant Filling Machine
4.Butyl Extruder Machine
5.Insulating Glass Sealing Robot
6.Glass Washing Machine
