Z TYPE Bucket Conveyor With Plate Framework

  • Z TYPE Bucket Conveyor With Plate Framework
  • Z TYPE Bucket Conveyor With Plate Framework

Z TYPE Bucket Conveyor With Plate Framework

    Min. Order: 1 Set/Sets
    Packaging: Wooden case
    Brand: Durzerd
    Transportation: Ocean
    Place of Origin: China
    Port: SHANGHAI PORT,NINGBO PORT

Product Description

Brief Introduction:

Z Type Bucket Conveyor (Plate Framework) is regular item which is applicable for vertical lifting of granule and small lumpy product such as grain, food, feed, pills, small plastic, corn, snack, candy, nuts and chemical product, etc. For bucket elevator conveyor, the bucket is driven by chains to convey. Automatic feeding and stopping can be realized by control circuit and control switch. Precise control of each part process makes the machine run smoothly with low noise. Suitable for vertical form fill seal machine and Rotary Premade Pouch Packing Machine.

Features:

1The conveyor is made of 304 stainless steel sanitary construction and food grade polypropylene (PP) bucket. Automatic stop & start sensor control with filling from hopper or to scale

2Equiped with multihead weigher and packaging machine , widely used in packaging industry.

3All parts and buckets with safety and easy removal, machine with automatic chain tighten device and overload protection.

Optional parts :

(1)Frame material : 304stainless steel or mild steel

(2)Food grade plastic bucket

(3)Custom design available

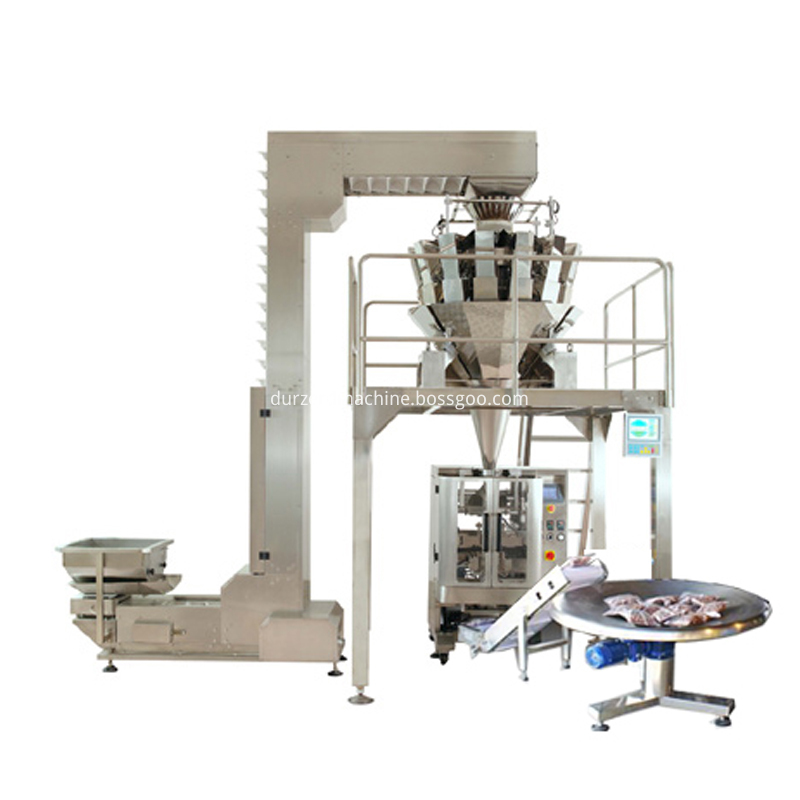

APPLICATION:The bucket elevator is applicable for various solid products, such as foodstuff, hard ware, plastic product, chemicals, etc. It is not suitable for sticky product. It usually cooperates together with the Feeder, Multi-head Weigher and Packing machine, etc. to form an automatic and high efficient packing system which is widely used for many sorts of packing industry, especially for food.

z type bucket elevator

Z Type Elevator Detailed description:

Bucket Elevator Conveyorbelt bucket elevator

Technical Parameters

Model

m

Bucket volumel

0.8 L

1.8 L

4.0 L

Capacity(m³/h)

≦2m³/h

2-6.5m³/h

6.5-12m³/h

Bucket Material

PP Food Grade

Bucket Style

Slippy bucket / Wave Point bucket

Framework Material

SUS304 / Mild steel with coating

Voltage Power

AC 220V/1Phase, 380V/3Phase, 50hz/60hz, 0.75kw

Parts Material

Sprocket:Mild steel with chrome coating

Axis:Mild steel with nickel coating

Dimension

3100mm*1300mm

Optional Parts

Frequency converter

Sensor

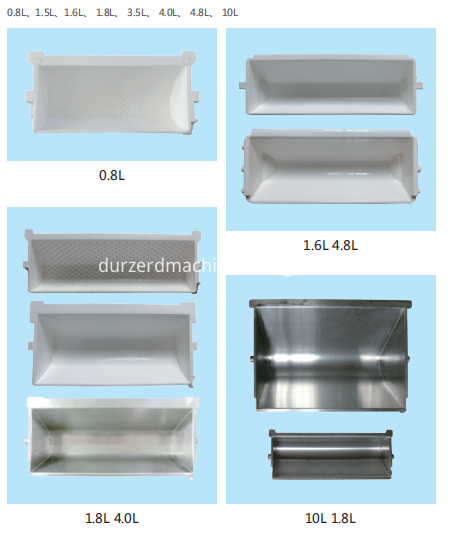

Bucket type:

z type elevator
